Optimized for performance
Play to your highest potential with a design that is optimized for performance.
1
17
- GRAPHICS | NVIDIA® GeForce RTX™ 5080
- PROCESSOR | AMD Ryzen™ AI 9 processor
- MEMORY | 32 GB DDR5-5600 MT/s (2 x 16 GB)
- STORAGE | 1 TB PCIe® Gen4 NVMe™ M.2 SSD
- DISPLAY | 16" diagonal, WQXGA (2560 x 1600), 60-240 Hz, 3 ms response time, IPS, micro-edge, anti-glare, Low Blue Light, 500 nits, 100% sRGB
Overview
xBuilt to surpass limits

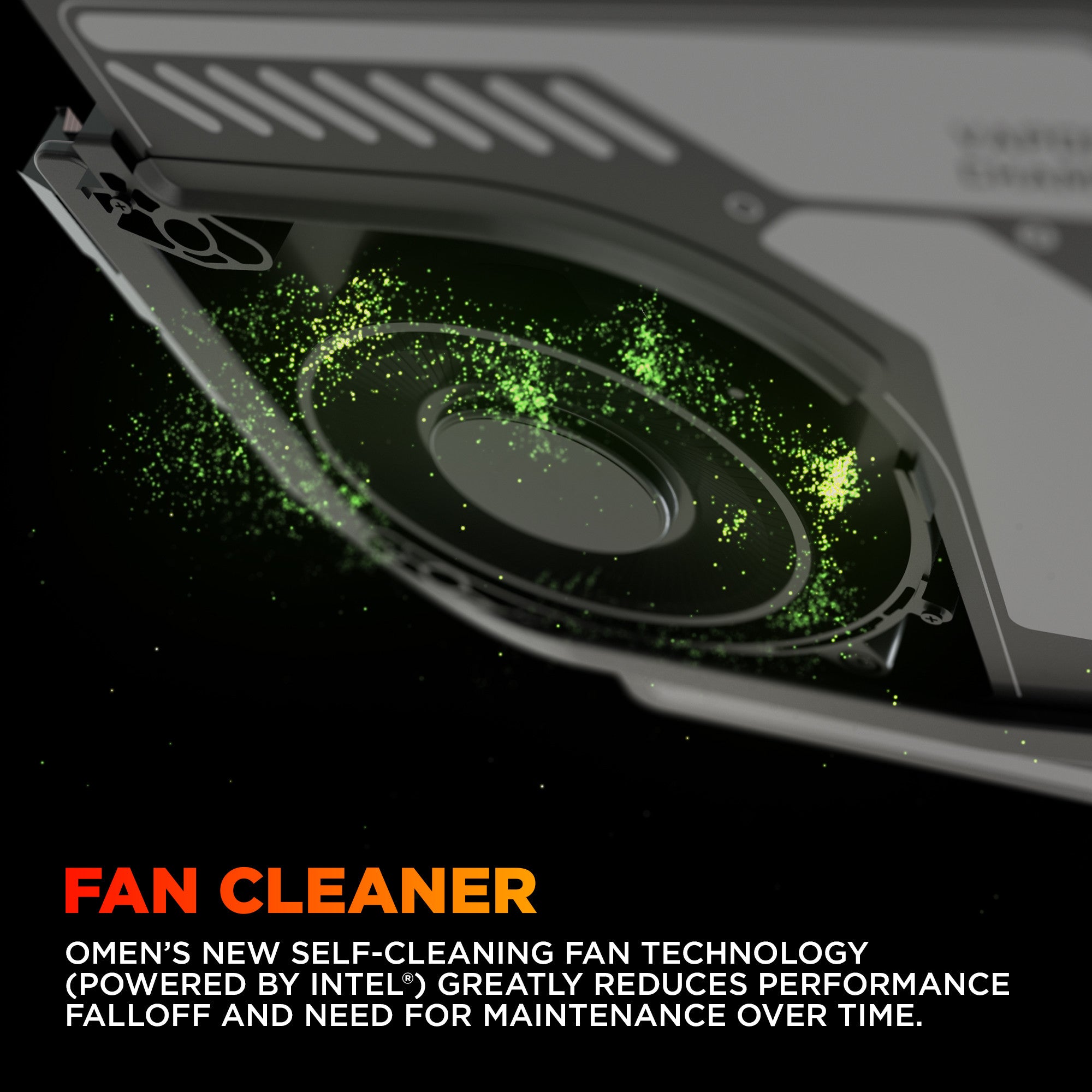

The OMEN 16 MAX gaming laptop provides unparalleled performance both at-home or on-the-go. With next-gen NVIDIA® GPUs and AMD Ryzen™ AI CPUs[1], a new Unleashed Mode for manual overclocking, and a thermal architecture built to cut down on both throttling and long term wear, dedicated gamers can achieve their best for years to come.
Futureproof, tool-less design
Designed for upgradability with OMEN Components, expand and customize within an industry-standard form factor.
Make it your own
Customize performance and aRGB options with OMEN Gaming Hub.
We're in this together
It matters. With 100% recyclable packaging solutions[2], at least 20% recycled plastic content and 10% recycled metal[3][4], we are in this together[5].
Game Changer
Powered by NVIDIA’s new Blackwell architecture, GeForce RTX™ 50 Series Laptop GPUs bring game-changing performance to gamers. Equipped with a massive level of AI horsepower, RTX 50 Series enables new experiences and next-level graphics fidelity. Multiply performance like never before with DLSS 4, reduce latency with Reflex 2, and unlock new levels of power efficiency with NVIDIA Max-Q.
DLSS 4
DLSS 4 massively increases performance and improves image quality for top games using the power of AI. Using a new frame generation model that’s 40% faster and uses 30% less VRAM, DLSS 4 only needs to run once to generate multiple frames, compared to DLSS3 which had to run for each generated frame. This is only made possible with the new 5ith generation Tensor Cores, which have 2.5x more processing power gen-over-gen.
NVIDIA Reflex 2
Reflex technologies optimise the graphics pipeline for ultimate responsiveness, providing faster target acquisition, quicker reaction times, and improved aim precision in competitive games. Reflex 2 introduces Frame Warp, which further reduces latency based on the game’s latest mouse input.
Technical Specifications
x| Spec Sheet | OMEN MAX Gaming Laptop 16-ak0098nr |
| Operating system | Windows 11 Home |
| Processor | AMD Ryzen™ AI 9 HX 375 (up to 5.1 GHz max boost clock, 24 MB L3 cache, 12 cores, 24 threads)[6,7] |
| Graphics |
Integrated: AMD Radeon™ 890M Graphics Discrete: NVIDIA® GeForce RTX™ 5080 (16 GB GDDR7 dedicated) |
| Display | 16" diagonal, WQXGA (2560 x 1600), 60-240 Hz, 3 ms response time, IPS, micro-edge, anti-glare, Low Blue Light, 500 nits, 100% sRGB |
| Display brightness | 500 nits |
| Display color gamut | 100% sRGB |
| Memory | 32 GB DDR5-5600 MT/s (2 x 16 GB) |
| Storage | 1 TB PCIe® Gen4 NVMe™ M.2 SSD |
| Network interface | Integrated 10/100/1000/2500 GbE LAN |
| Wireless technology | MediaTek Wi-Fi 7 MT7925 (2x2) and Bluetooth® 5.4 wireless card |
| Power supply | 330 W AC power adapter |
| Battery | 6-cell, 83 Wh Li-ion polymer |
| Battery Recharge Time | Supports battery fast charge: approximately 50% in 30 minutes[5] |

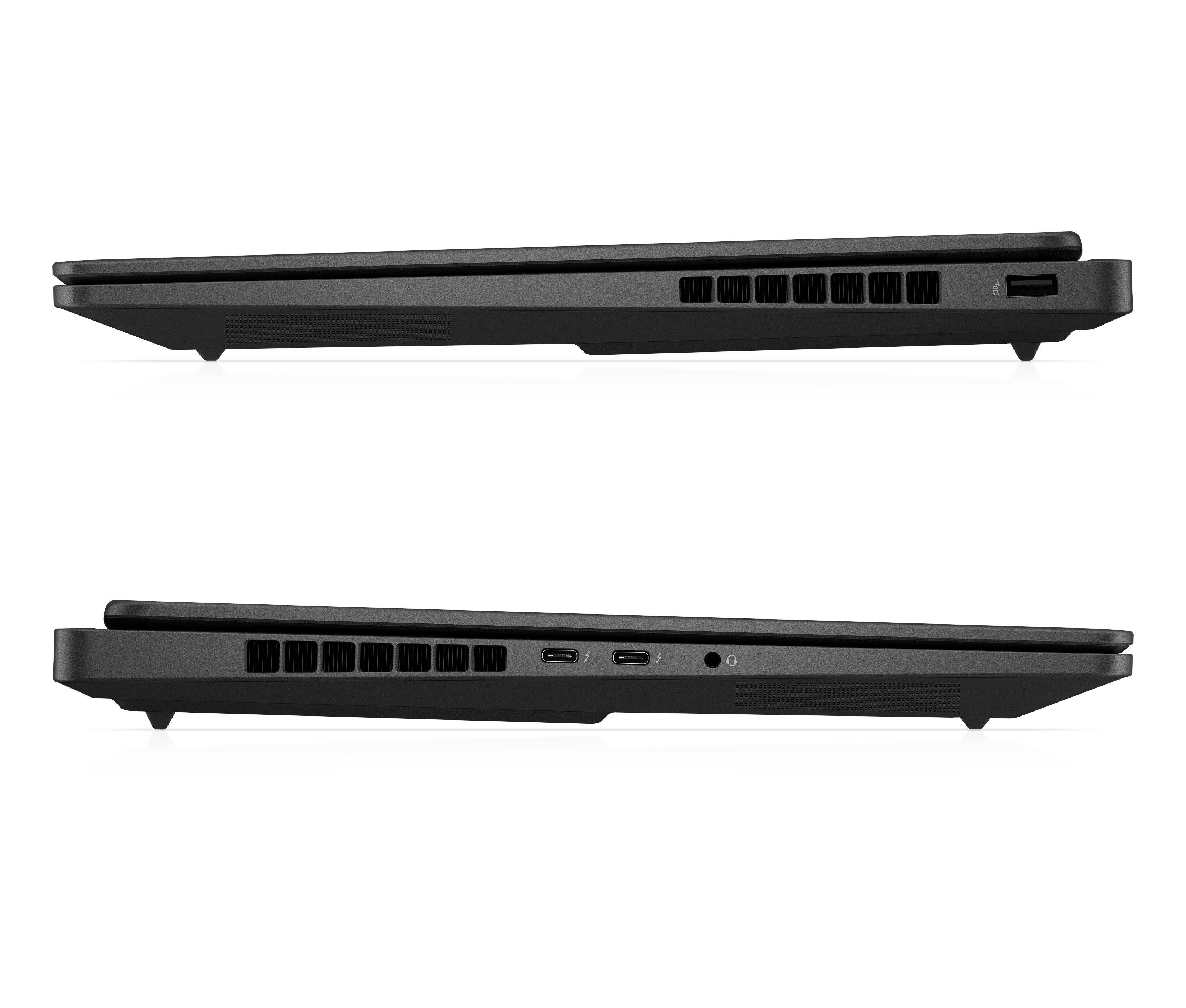

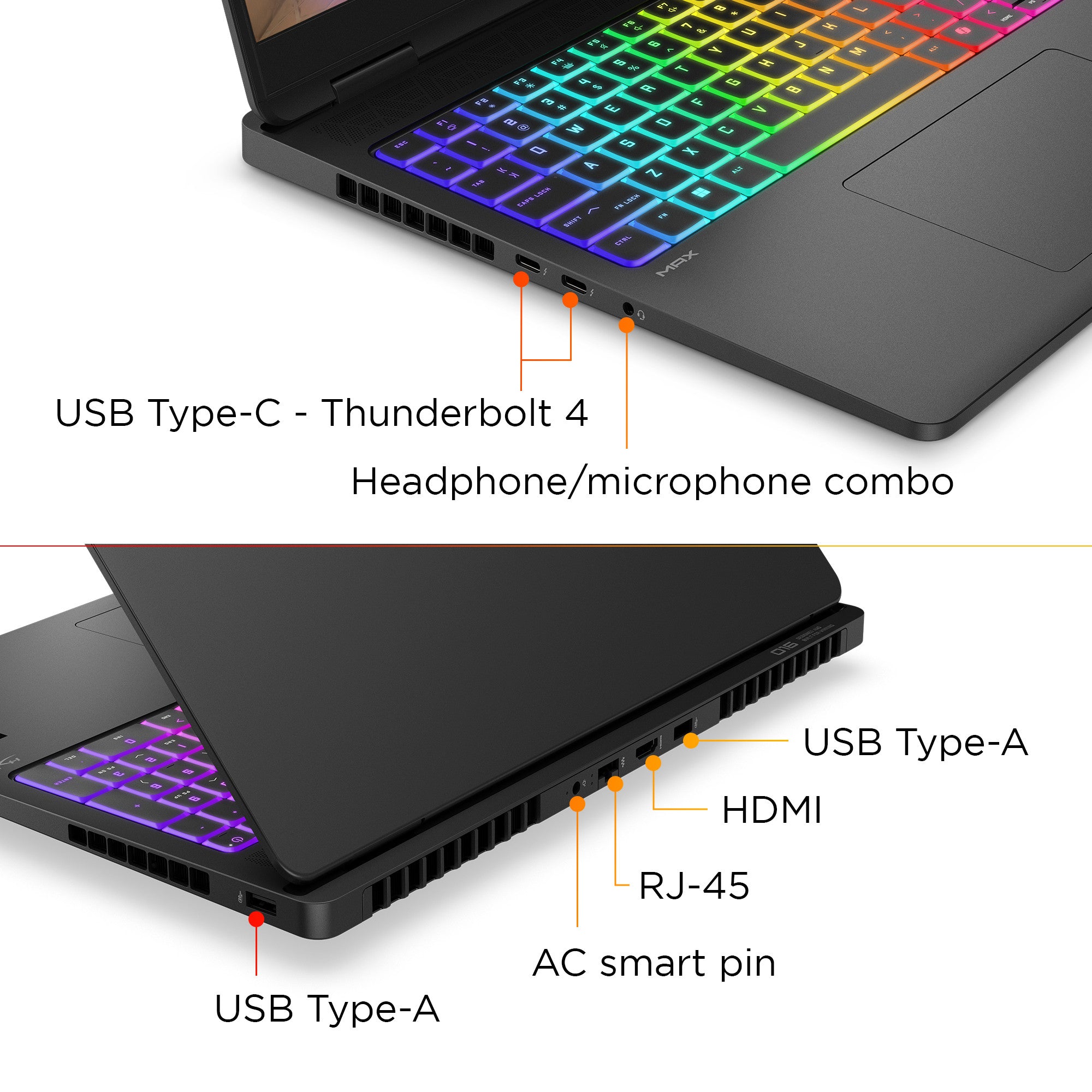

| External I/O Ports |
2 USB Type-A 10Gbps signaling rate 1 AC smart pin 1 HDMI 2.1 1 headphone/microphone combo 1 RJ-45 2 USB Type-C® 40Gbps signaling rate (USB Power Delivery 3.1, DisplayPort™ 2.1, HP Sleep and Charge)[19,42] |
| Expansion slots | 2 M.2 (SSD)[51] |
| Energy efficiency | EPEAT® Gold with Climate+ |
| Webcam | HP True Vision 1080p FHD IR camera with temporal noise reduction and integrated dual array digital microphones |
| Audio Features | DTS:X® Ultra; Dual speakers; HP Audio Boost; HyperX |
| Sensors | IR thermal sensor |
| Color | Shadow black |
| Pointing device | HP Imagepad |
| Keyboard | Full-size, per key RGB backlit, shadow black keyboard with numeric keypad and NKRO Anti-Ghosting Key technology |
| Dimensions (W X D X H) |
14.04 x 10.59 x 0.9 in (front) 14.04 x 10.59 x 0.98 in (rear) |
| Weight | 5.99 lb |
| Warranty | 1-year limited hardware warranty. Additional information available at www.support.hp.com; 1-year limited technical support for software and initial setup (from date of purchase) |
| Software included | 1-month Adobe free trial offer; McAfee Online Protection 30-day trial; PC Game Pass 3-month trial; Otter.ai; Copilot in Windows with Copilot key; 1 month trial for new Microsoft 365 customers[36][2, 25, 43][24] |
| Security management | Camera privacy shutter; Trusted Platform Module (Firmware TPM) support |
| Neural Processing Unit (NPU) | AMD Ryzen™ AI (55 NPU TOPS) |
