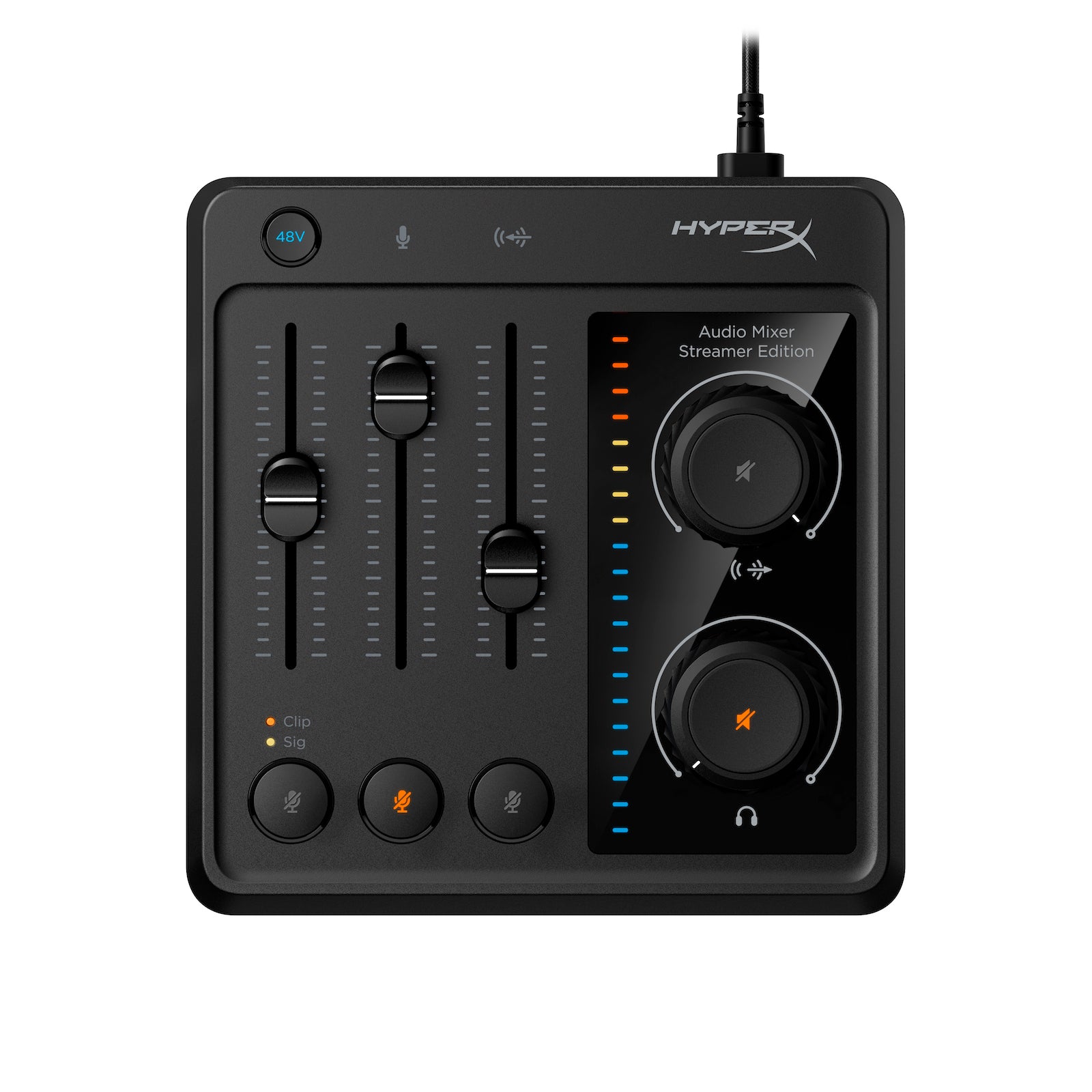

HyperX Audio Mixer

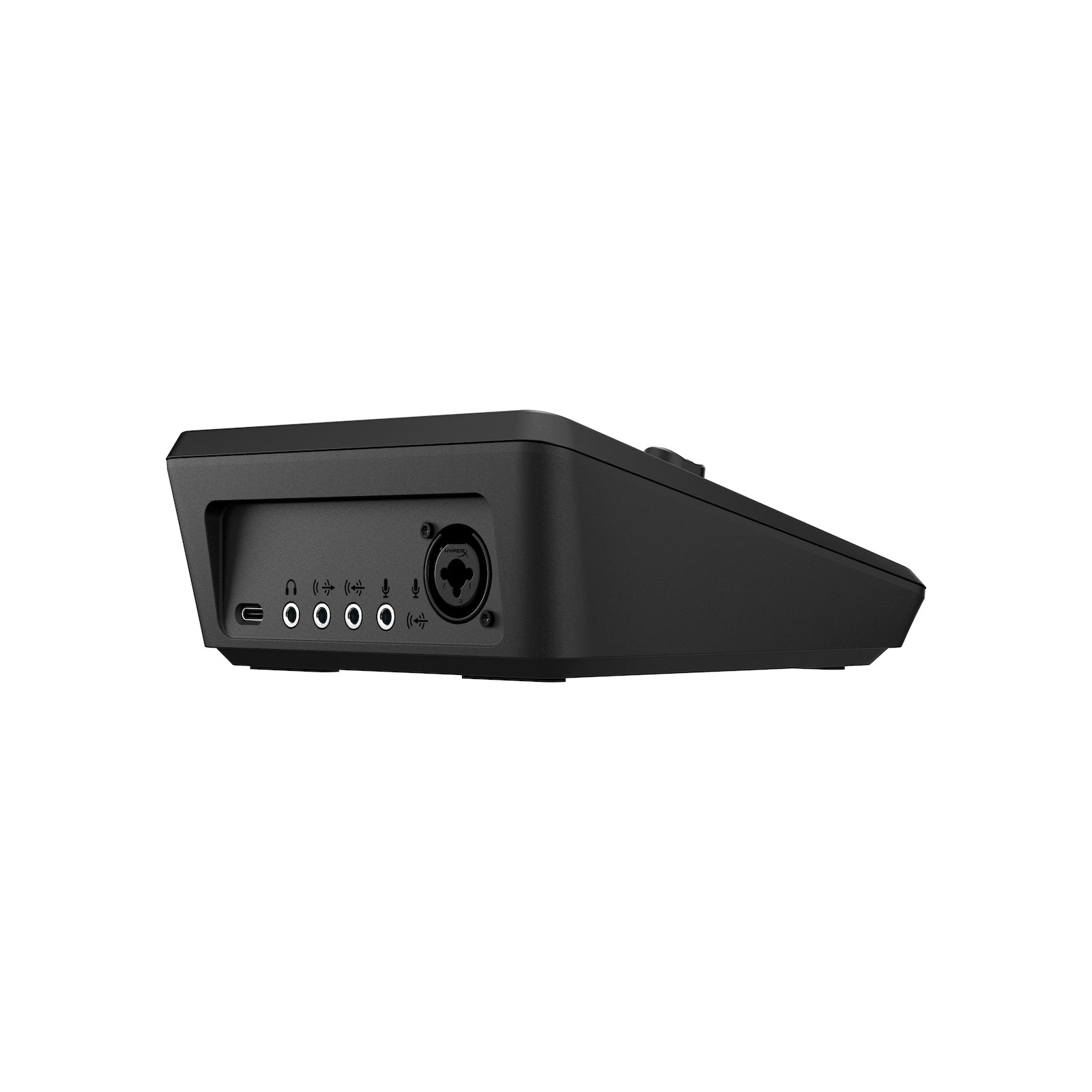

Connections and Features

• Microphone input(s): 1x XLR / ¼” TRS combo jack, 1x 3.5mm
• USB connection: USB-C
• USB specification: USB 2.0 (high speed)
• USB audio class: UAC 2.0
• Bit depth(s): 24-bit, 16-bit
• Controls: Input gain faders: XLR / ¼” TRS microphone, 3.5mm microphone, 3.5mm line input; Input mute buttons: XLR / ¼” TRS microphone, 3.5mm microphone, 3.5mm line input; Output volume knobs: headphone, line output; Output mute buttons: headphone, line output; 48V phantom power button.
• Power supply: 5V, 500mA (USB)
• System compatibility: Microsoft Windows 10 (build 1703) and newer, macOS.

XLR Microphone Input

• Input type: Balanced, mono
• Frequency response: 20Hz - 20kHz
• Gain range: 1 - 50dB
• THD+N: < 1% (at 1kHz/0dB Gain)
• Noise: ≤-88dBFS (at 0dB Gain, A-weighted)

¼” 6.35mm TRS Microphone Input

• Input type: Balanced, mono
• Frequency response: 20Hz - 20kHz
• Gain range: 1 - 50dB
• THD+N: < 1% (at 1kHz/0dB Gain)
• Noise: ≤-88dBFS (at 0dB Gain, A-weighted)

3.5mm Microphone Input

• Input type: ; Unbalanced, mono.
• Frequency response: 20Hz - 20kHz
• Gain range: -12dB - 34dB.
• THD+N: < 1% (at 1kHz/0dB Gain)
• Noise: ≤-91dBFS (at 0dB Gain, A-weighted).
• Microphone bias: 2.7V, 2.2 kΩ, 500uA

3.5mm Line Input

• Frequency response: 20Hz - 20kHz
• THD+N: < 1% (at 1kHz/0dB Gain)

3.5mm Headphone Output

• Frequency response: 20Hz - 20kHz
• Maximum output power: ≥22mW
• THD+N: < 1% (at 1kHz/0dBFS, A-weighted)
• Noise: ≤-91dV (A-weighted)
• SNR: ≥95dB (at 1kHz/0dBFS, A-weighted)

3.5mm Line Output

• Frequency response: 20Hz - 20kHz
• THD+N: < 1% (at 1kHz/0dBFS).
• Noise: ≤-95dV (A-weighted).
• SNR: ≥95dB (at 1kHz/0dBFS, A-weighted)

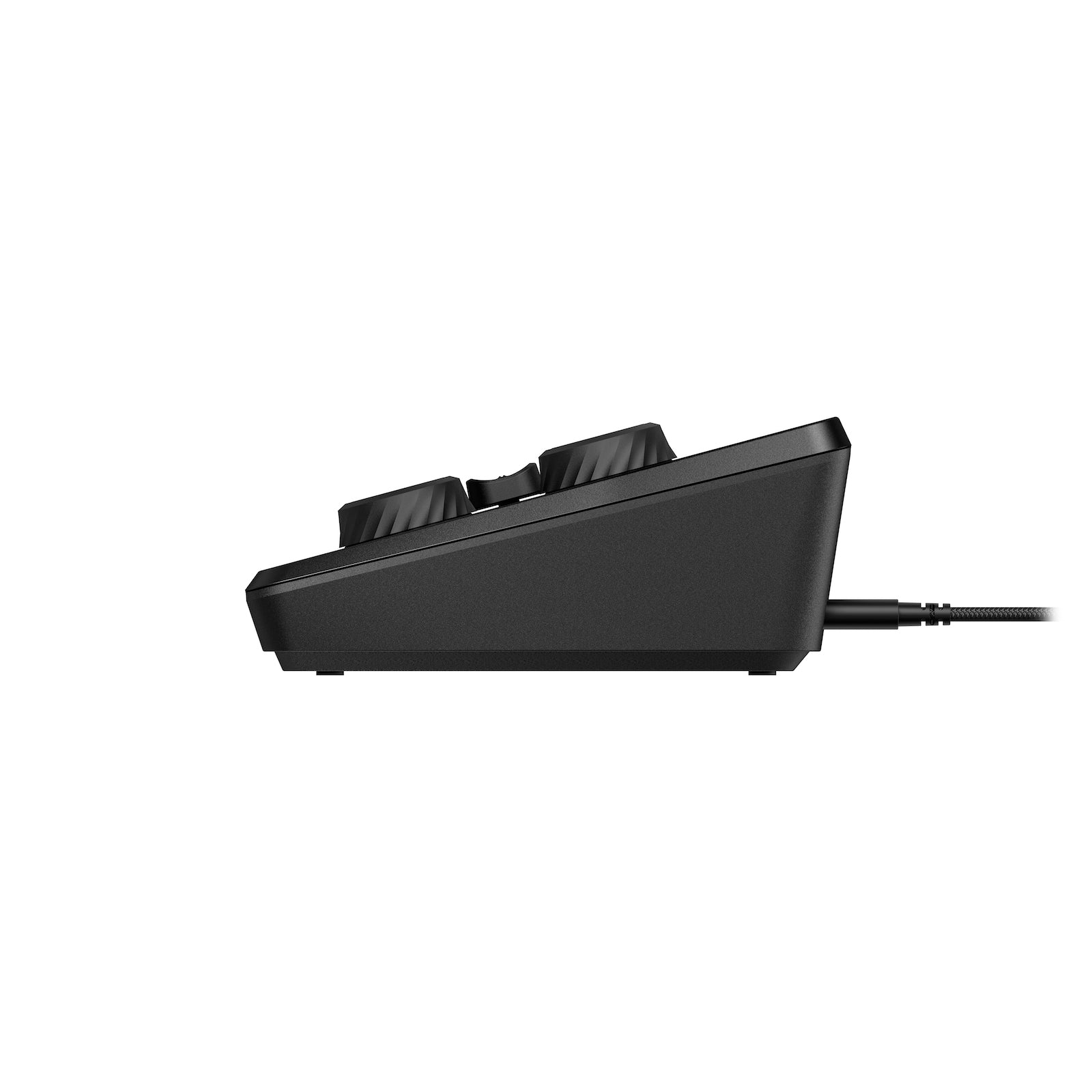

Physical Specifications

• Length: 144mm
• Width: 140mm
• Height: 59mm

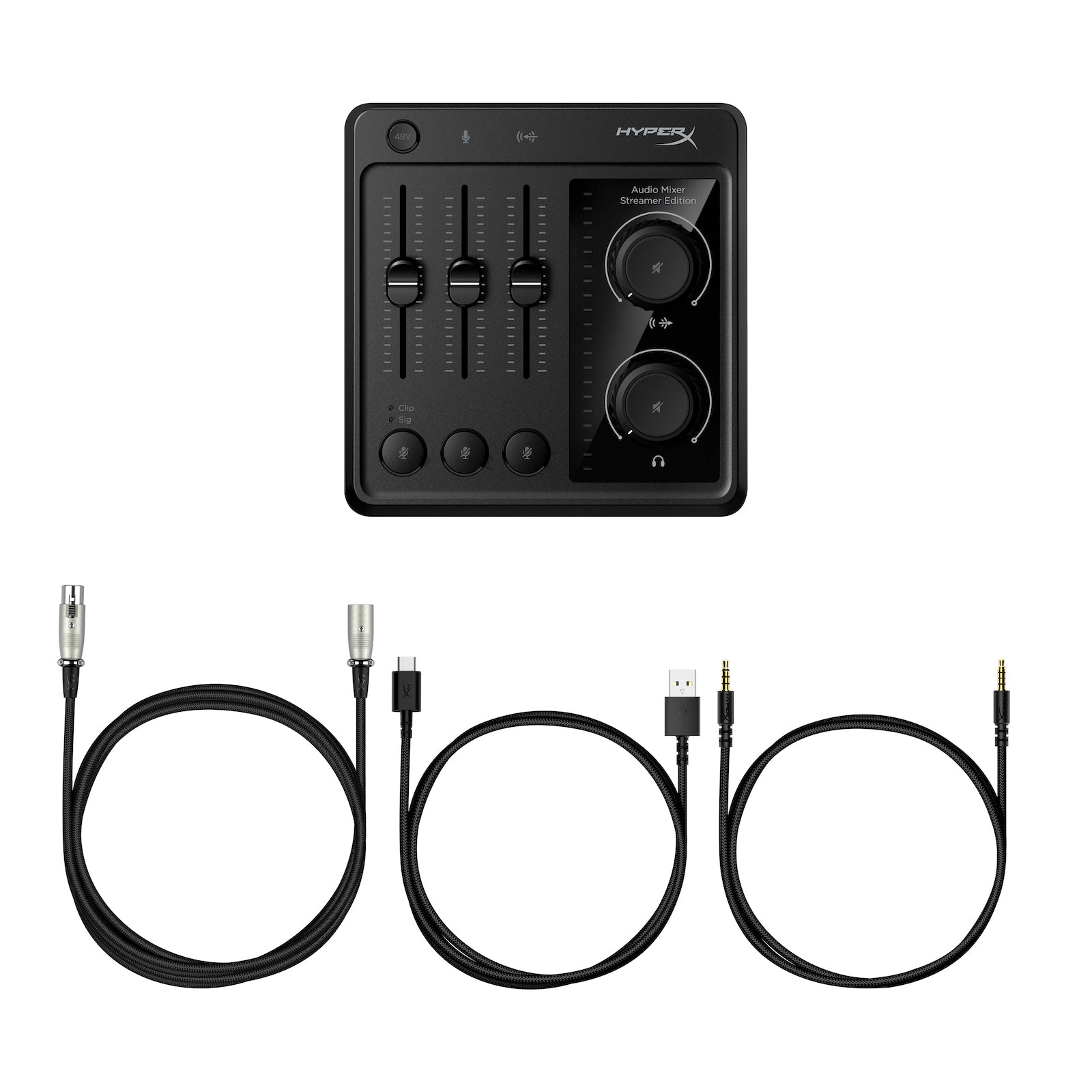

• Cable length(s) and type(s): 118.1in XLR, 59.05in USB-C to USB-A, 1.2m 4-pole 0.13in audio
